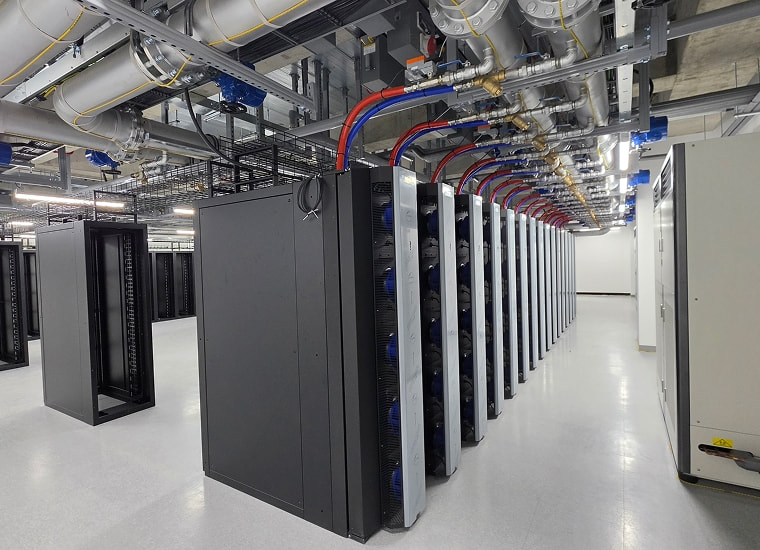

Edge AIDC – Server Room
GnCenergy’s edge data center introduces Rear Door Heat Exchanger (RDHx) technology for the first time in Korea, delivering cooling capacity for high-density power loads of up to 80 kW. Furthermore, heat generated by operating equipment is cooled directly at the source, which ensures optimal thermal efficiency and energy performance, and maintains stable room temperatures without the need for hot- or cold-aisle containment. This solution circulates cooling water through a closed piping system.
※ RDHx(Rear DoorHeat Exchanger)

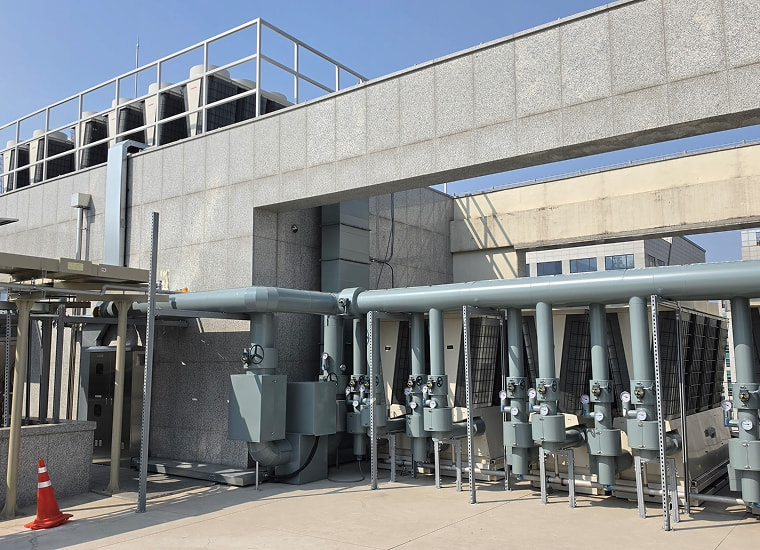

Edge AIDC – Air-cooled Multi-Heat Pump Chiller
The air-cooled multi-heat pump chiller has a cooling capacity of 180KW per unit. One system is operated in a group of six units, and the cooling capacity per system is 1,080KW. It supplies a cooling capacity of 1,080KW to Server Rooms 1 and 2 respectively, supplies chilled water at 20℃ to the RDHx, and recovers it as water at 27℃ after heat exchange. This solution circulates the cooling water through a closed piping system, causing no water loss.
*Total Cooling Capacity: 2,160KW (Two systems on the rooftop and penthouse)

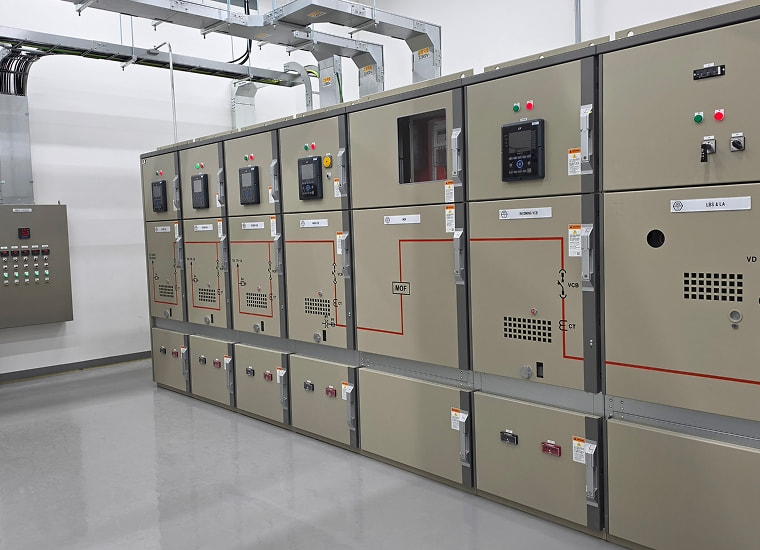

Edge AIDC – Electrical Room
The power receiving capacity is 3,500KW, with a primary voltage of 22,900V and a secondary voltage of 380-220V. The transformers consist of two 3,000KW units for IT and one 500KW unit for the building. The IT version consists of a main transformer and a backup transformer, enabling switchover in the event of main transformer failure. The extra-high voltage panel uses the MCSG type to completely isolate the circuit breaker room, busbar room, and Cable room, thereby enhancing safety.
※ MCSG : Matal Clad Switchgear
